| The StellarRAD Handheld SpectroRadiometer system is delivered preinstalled and has pre-loaded calibration files. All a user must do is press the main system power button on the right side of the handheld case and the power button will illuminate. This turns on the main spectrometer engine and usually takes about 1 minute to initialize.
|

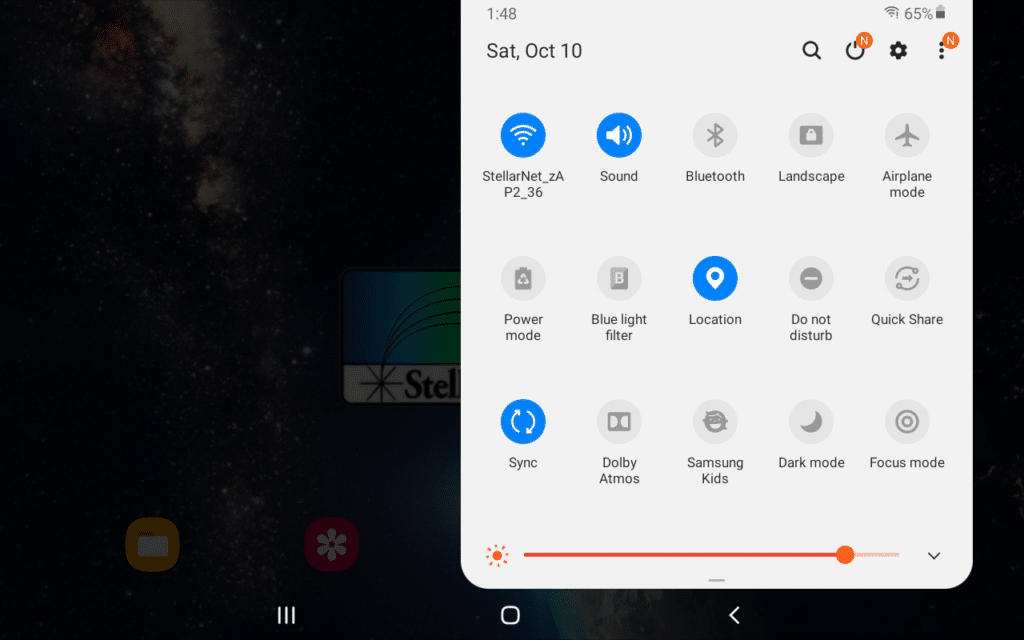

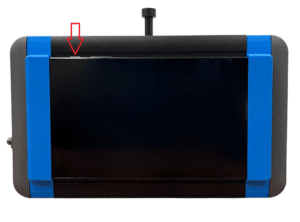

Next, the user must turn on the the system’s Android tablet interface located on the top side of the touchscreen display. The tablet will turn on and allow normal operation of the Android system. As soon as the spectrometer engine initializes, the Android tablet will automatically connect to its WiFi signal. You can verify or reconnect to your spectrometer engine at anytime by reviewing your WiFi settings.  |

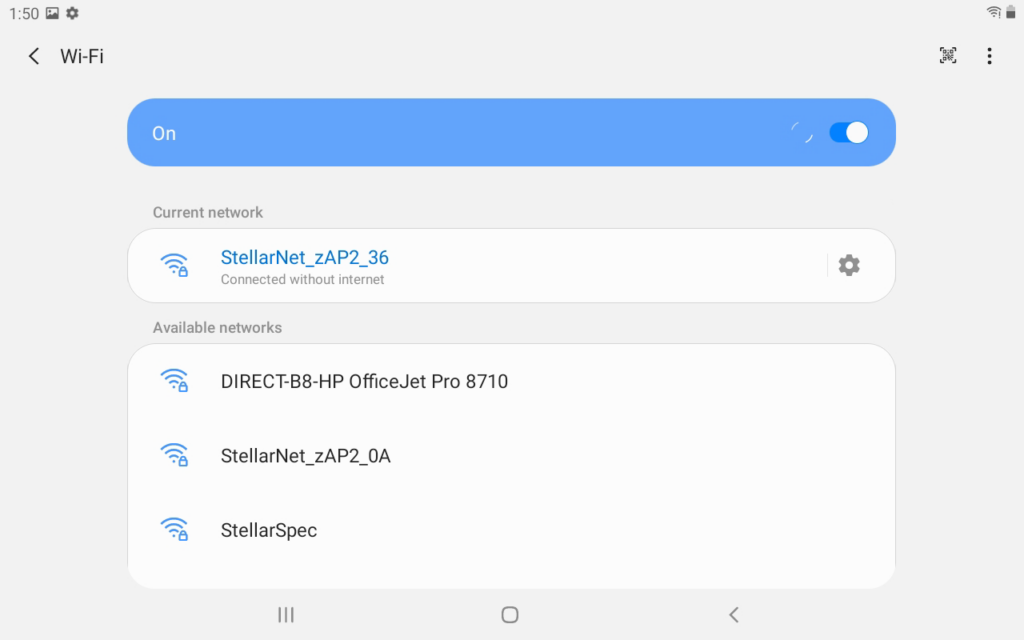

WiFi network is StellarNet_zAP2_deviceID and password is always stellarnet. If connection is lost it could be because you (1) have added a stronger wireless network to your device and your system connects to it automatically or (2) your spectrometer engine’s main battery supply is depleted and a re-charge or plug-in is required to reconnect. Forgetting other wireless networks allows your device to automatically connect.  |
StellarRAD System Power & Spectrometer Engine Connection
