Quasar™ High Throughput Spectrometers
High throughput - f/2 Optics - Over 10x Sensitivity Request a QuoteDownload Instrument PDFSimilar Searches: Raman Probes, Raman Lasers, Raman Microscopes, Portable Raman Analyzers, Raman Libraries
Check out the data collected at 300ms, 10x faster than the standard Raman Spectrometer!
The Quasar Spectrometer comes with our new high throughput f/2 optical design for Raman spectroscopy with increased photon collection over 10x! This translates into taking spectroscopic measurements 10x faster, reducing noise, and increasing detection limits astronomically.
Quasar-785 Spectrometers are our highest throughput 785nm Raman spectrometers and include an enhanced CCD array detector tuned for 785nm Raman with advanced detector lens assembly for sensitivity at long exposure times.
Quasar-785-TEC-X2 Spectrometers offer 2-stage detector cooling for ultimate sensitivity and performance! Great for long exposures up to 8 minutes.

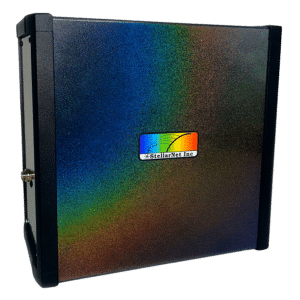

Quasar-785-UltraCool Upgrade your Quasar with a deep-cooled HYPER-Nova detector to include a low dark current, vacuum-sealed, and deep-cooled CCD array detector.
Quasar-532 Spectrometers are our highest throughput 532nm Raman spectrometers and include an enhanced CCD array detector tuned for 532nm Raman with advanced detector lens assembly for sensitivity at long exposure times.
Quasar-532-TEC-X2 Spectrometers offer 2-stage detector cooling for ultimate sensitivity and performance! Great for long exposures up to 8 minutes.
Quasar-532-UltraCool upgrade your Quasar with a deep-cooled HYPER-Nova detector to include a low dark current, vacuum sealed, and deep-cooled CCD array detector.
Model Ranges and Resolutions
Quasar Raman Spectrometer | Wavelength Range (cm-1) | 10x Optical Gain | Resolution (cm-1) | Detector Cooler Package ~°C Below Ambient |
---|---|---|---|---|
Quasar-TEC-785 | 200-2,750 | Yes | 4 | TEC-1, 15°C |
Quasar-785-TEC-X2 | 200-2,750 | Yes | 4 | TEC-X2, 30°C |
Quasar-785-UC | 200-2,750 | Yes | 4 | UltraCool Vacuum, 80°C |
Quasar-532 | 200-4,500 | Yes | 9 | TEC-1,15°C |
Quasar-532-TEC-X2 | 200-4,500 | Yes | 9 | TEC-X2, 30°C |
Quasar-532-UC | 200-4,500 | Yes | 9 | UltraCool Vacuum, 80°C |
Technical Specifications
Optical Parameters | |
Optical Resolution 785; 532: | 4 cm-1; 9 cm-1 |
Spectral Range 785; 532: | 200-2,750 cm-1; 200-4,500 cm-1 |
Spectrograph Aperture: | f/2 |
Gratings: | Transmissive High Throughput |
Optical Gain: | >10x signal enhancement |
Stray Light: | <0.05% |
Optical Input: | SMA-905 |
Detector & Electronics | |
Detector Type: | 2048 pixels CCD/CMOS/PDA 14um x 200um UC options see HYPER-Nova detector specs |
Detector Lens: | Advanced cylindrical lens assembly |
Thermo Electric Cooling: | TEC-1 = -15°C TEC-X2 = -30°C UC = -40+°C |
Exposure Times: | - 20s without TEC - 60s with TEC - 8 minutes with TEC-X2! -Longest with UC |
Signal to Noise: | >1000:1 @ Exposure time above 30s TEC 1 has >50% noise reduction and TEC-X2 has >80% |
Physical | |
Dimensions: | 6 x 17 x 15.5 cm |
Weight: | 2.5 kg |
Software & Interface | |
Operating System: | Win XP, 7,8,10 Linux |
Interface: | USB-2 (Wifi & Webserver Options) |
Software: | SpectraWiz, StellarPro, SpectraWiz-ID, LabView, Spectroscopy Pro-tools, Delphi, C, C# |
