StellarElite – SE-Laser-XXX Lasers for Raman Spectroscopy
Similar Searches: Raman Probes, Raman Lasers, Raman Microscopes, Portable Raman Analyzers, Raman Libraries
SE-Laser is available in 532, 785, or 1064nm. Contact us for other wavelength options!

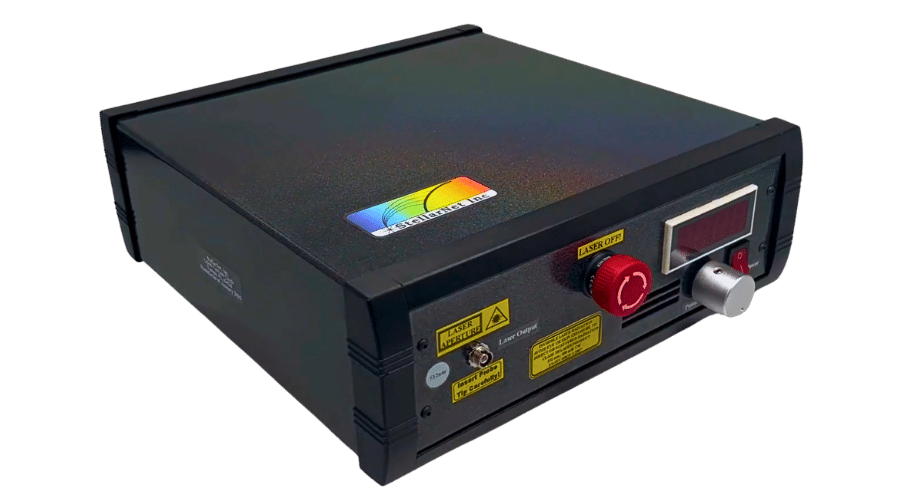

The StellarElite Raman Laser Platform is a family of high-stability, continuous-wave excitation lasers designed for laboratory, process, and microscope-based Raman spectroscopy.
Available in multiple wavelengths, each laser delivers precise power control, integrated safety features, and USB connectivity for seamless system integration and automated workflows.
Key Platform Features
- Available Raman excitation wavelengths include 532 nm (DPSS), 785 nm, and 1064 nm
- Precision adjustable output power to accommodate sensitive samples and varying signal requirements
- Integrated LCD display for live status, power setting, and fault indication
- Continuous-wave operation optimized for long-term stability and repeatable Raman measurements
- On/Off USB control integrated into StellarPro software

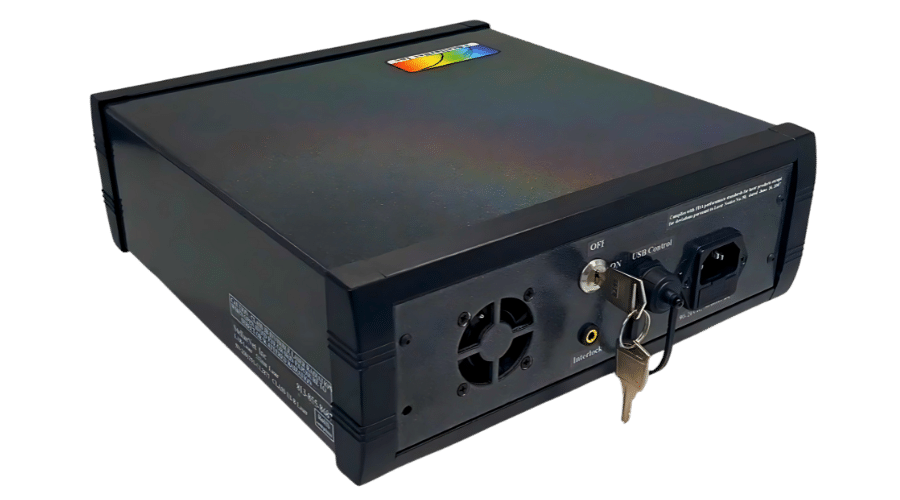

- Built-in E-Stop and safety interlock support for compliant laboratory and process use
- Designed for microscope-coupled, benchtop, and in-line/process Raman applications
Typical Applications
- Raman microscopy and micro-analysis
- Materials identification and characterization
- Pharmaceutical and chemical analysis
- Microplastics, polymers, and forensic analysis
- In-line and process Raman monitoring
Model Ranges and Resolutions
| Specification | Units | SE-Laser-532 | SE-Laser-785 | SE-Laser-1064 |
|---|---|---|---|---|
| Center Wavelength | nm | 532 ±1nm | 785 ±1nm | 1064 ±1nm |
| Output Power | mW | 100mW | 500mW | 500mW |
| Laser Output Power Stability | <3% | <3% | <3% | |
| Laser Beam Mode | TEM00 | TEM00 | TEM00 | |
| Beam Profile | FWHM | <0.1nm | <0.1nm | <0.1nm |
| Spectrum Stability | <0.1nm | <0.1nm | <0.1nm |
