New DWARF-Star and RED-Wave package discounts now available! Couple two NIR spectrometers to cover your requested range with increased resolution and improved sensitivity. Maximize your performance and save your wallet. Package discounts available with big discounts. Save up to $5,000 when you buy together. Two 512 pixel NIR spectrometers work as one to out perform 1024 pixel arrays of the same price! This offer is only through our US sales office, please contact your local distributor for pricing and discounts available in your region.

Example Configurations

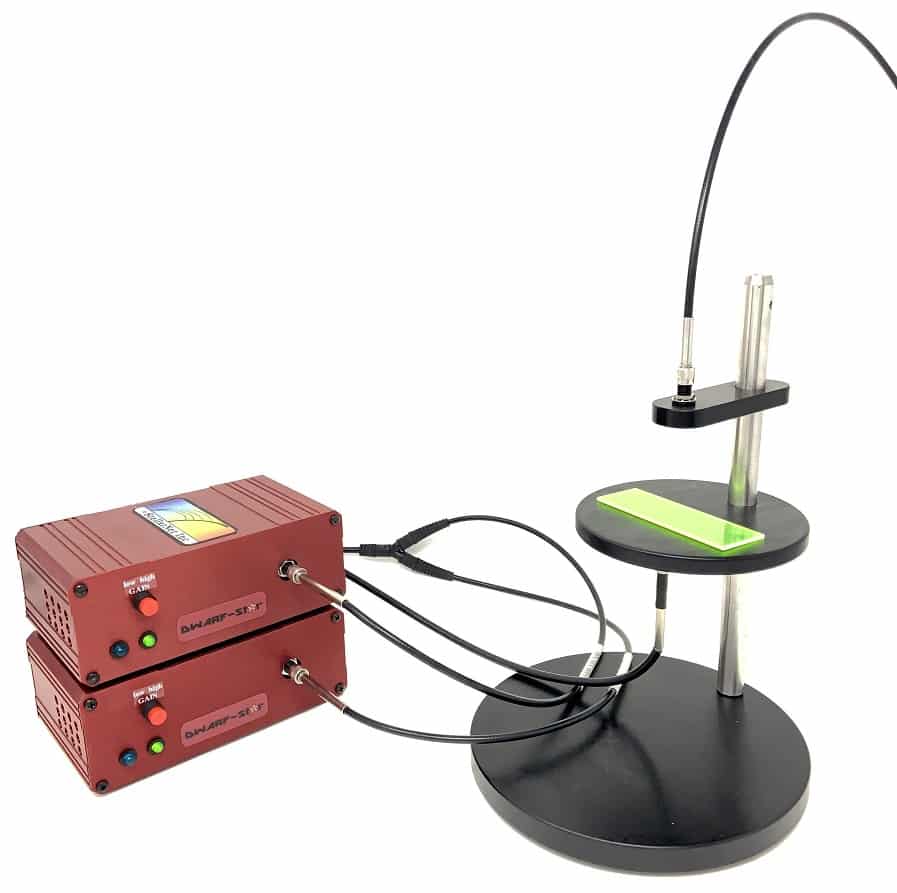

Optical Transmission

DWARF-Star (900-1700nm) coupled with RED-Wave-NIRX (1500-2200nm) for 900-2200nm transmission range. Measure optical density and transmission of filters, films, optics, and various materials with < 3nm resolution.

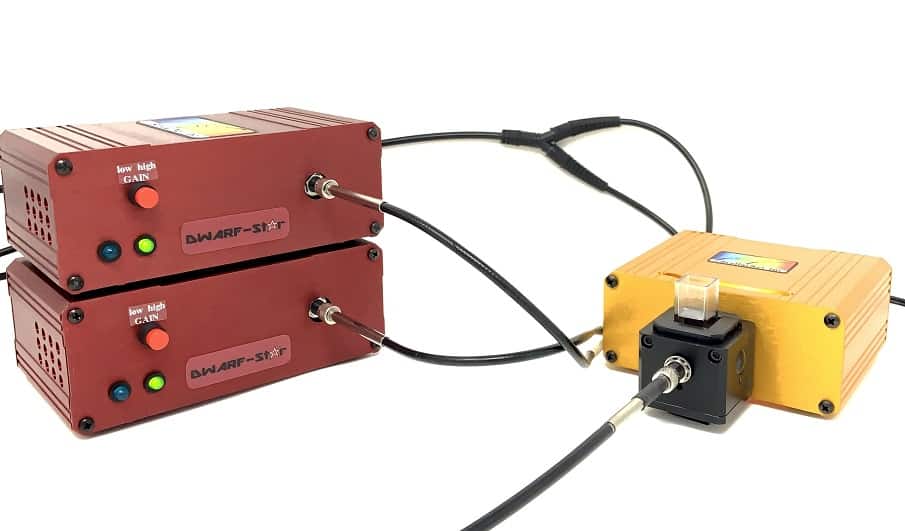

Chemical Absorbance

DWARF-Star (900-1700nm) coupled with RED-Wave-NIRX (1500-2200nm) for 900-2200nm chemical absorbance. Measure near-infrared chemical absorbance with < 3nm resolution over the range.

Laser Measurement

DWARF-Star (900-1700nm) coupled with RED-Wave-NIRX (1500-2200nm) for 900-2200nm laser wavelength monitoring.

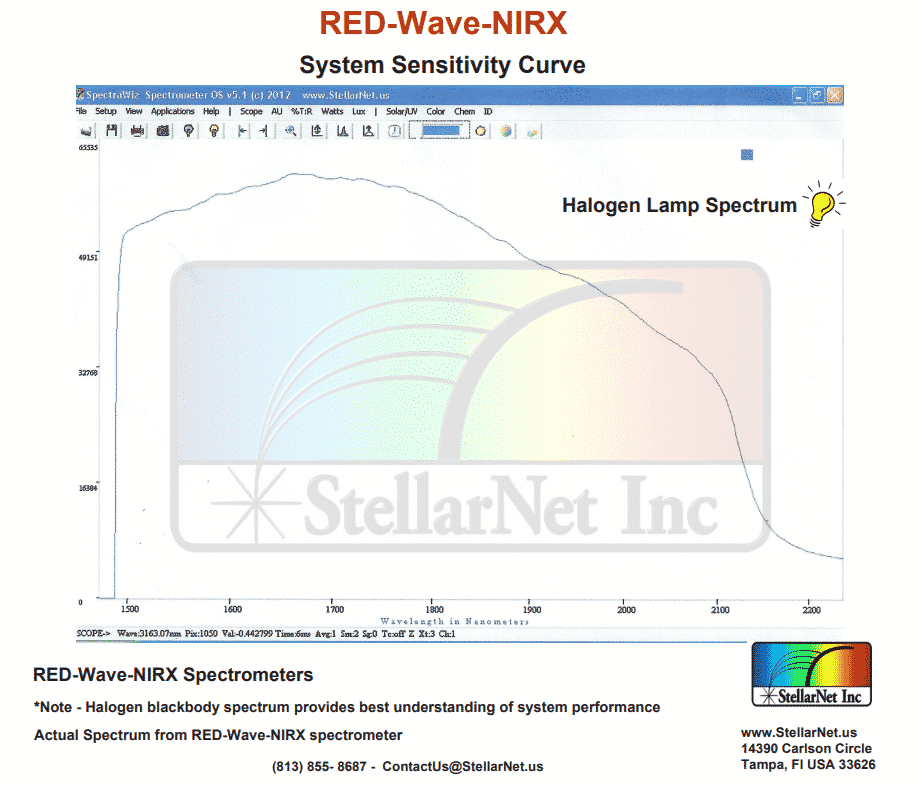

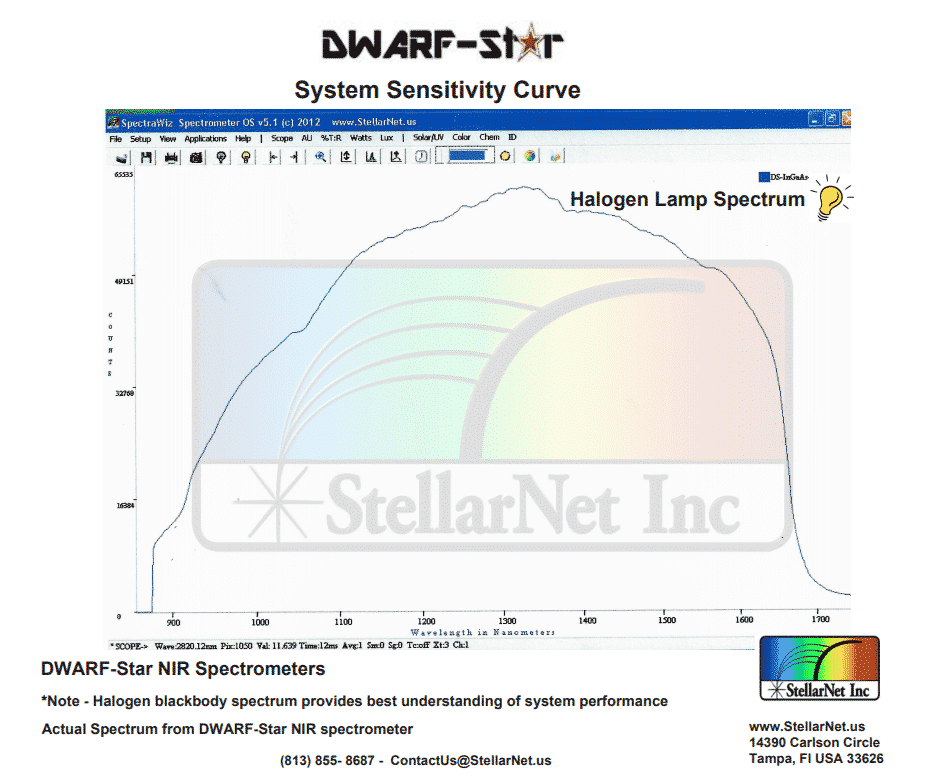

Improved Sensitivity 900-2200nm

Using two spectrometers with optimized InGaAs detectors and gratings for their respective wavelength range allows for improved spectral response.

Improved Resolutions better than 3nm over the range!

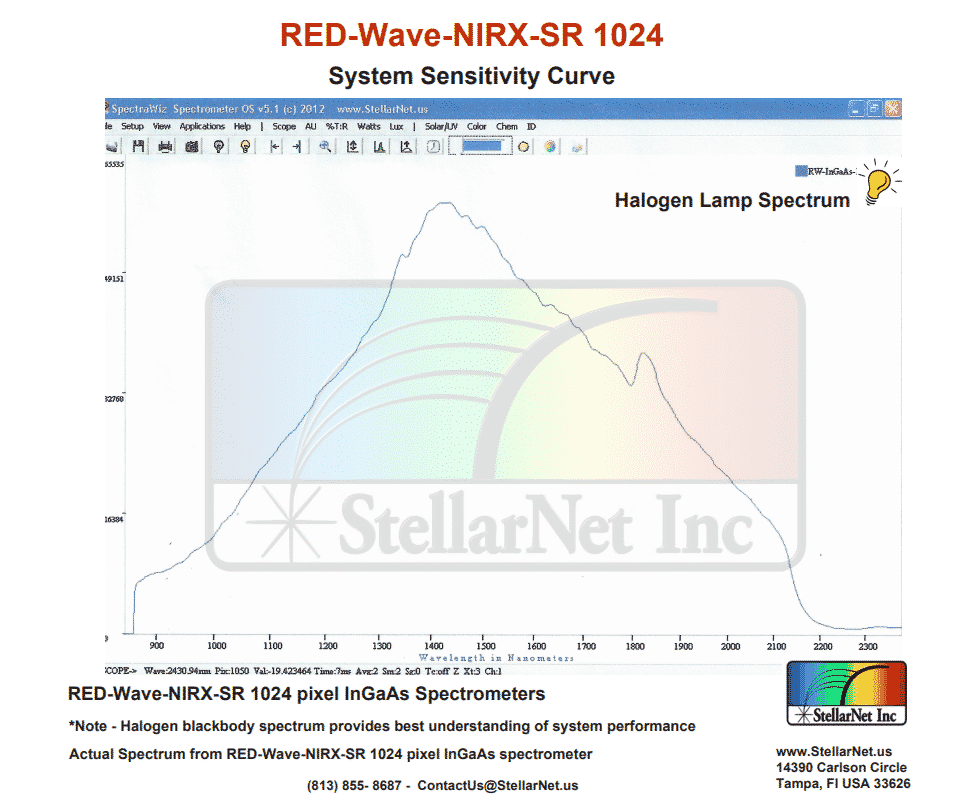

Each channel provides <3nm spectral resolution. Compare this to the 1024 pixel RED-Wave-NIRX-SR (900-2200nm) alternative which has approximately 7nm resolution.

Save your Wallet!

When these two NIR spectrometers are purchased together in this NIR package, StellarNet offers a discount incentive of $4,000. This matches the price of the equivalent single model spectrometer, the RED-Wave-NIRX-SR 1024 pixel at $28,995. Don’t miss this sweet deal. Get your quote today!

RED-Wave-NIRX-SR

Standard Single Spectrometer Option

$28,995

RED-Wave-NIRX-SR 1024 pixel (900-2200nm)
7nm Spectral Resolution
Great for Optical Transmission, Chemical Absorbance, Laser Monitoring
Can not be used for calibrated spectroradiometry, reflectance, & fluorescence applications

NIR Package Deal

DWARF-Star + RED-Wave-NIRX

$28,995

DWARF-Star 512 pixel (900-1700nm)
RED-Wave-NIRX 512 pixel (1500-2200nm)
3nm Spectral Resolution
Improved Spectral Response
$5,000 savings when purchased as a package
Great for Optical Transmission, Chemical Absorbance, Laser Monitoring
Great for short range (900-1700nm) calibrated spectroradiometry, reflectance, & fluorescence applications
Each channel can be used together and separately

NIR High Resolution Package Deal

DWARF-Star + RED-Wave-NIRX

$42,690

DWARF-Star 1024 pixel (900-1700nm)
RED-Wave-NIRX 1024 pixel (1500-2200nm)
1.5nm Spectral Resolution
Improved Spectral Response
$5,000 savings when purchased as a package
Great for Optical Transmission, Chemical Absorbance, Laser Monitoring
Great for short range (900-1700nm) calibrated spectroradiometry, reflectance, & fluorescence applications
Each channel can be used together and separately

Application accessories such as light sources and fiber optic cables not included in price totals. ContactUs@StellarNet.us for a complete quotation. Proudly using Sensors Unlimited’s highest quality InGaAs Detector Arrays made in the USA.

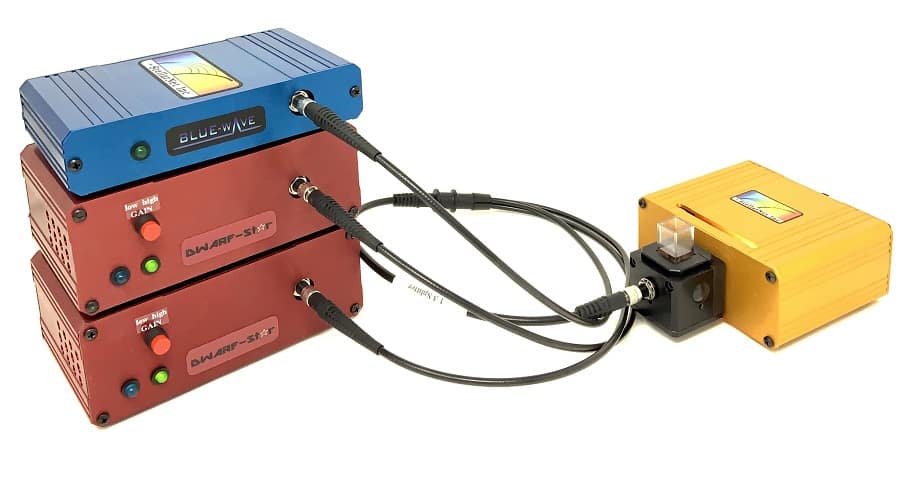

And Don’t forget your UV-VIS Spectrometer Channel!

Our Windows Software, SpectraWiz, can talk to up to 8 spectrometer channels simultaneously so don’t forget to add a UV-VIS spectrometer to your configuration to complete your range.
