Color Measurement Systems

CIELAB Color Analysis and full spectrum SpectroColorimetry Request a QuoteDownload Instrument PDF

Color Measurement Features  Onlineshop

  • Reliably measure the color of liquids, solids, and powder samples
  • Color Measurement Systems include a miniature spectrometer, light source, and a probe or cuvette holder depending on your sample type
  • SpectraWiz easily measures CIELAB L*a*b* with Delta E* color differences
  • Compare sample colors quickly and accurately. Color variation displayed as numerical value helps identify variation better than your eyes.
  • Great for Quality Control, Process, and R&D applications
color setup two

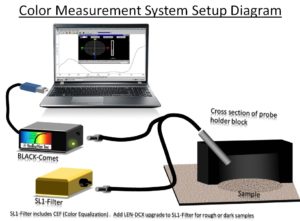

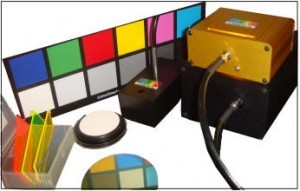

StellarNet Modular Color Analysis System- BLACK-Comet-CXR color spectrophotometer, SL1 Halogen Krypton Light Source, R600-8-VIS Reflectance Probe, RPH1 Reflectance Probe Holder, and RS50 Reflection Standard

Spectrometers for Color Measurement
These instruments measure the color of solid and liquid samples using either a fiber optic reflectance probe, sample fixture, flow cell, dip probe, or cuvette holder. They’re great for use in the lab, field, or on-line/at-line production environments. Finally, the solution you’ve been looking for! Color quality control is now affordable with a StellarNet Color Measurement system.


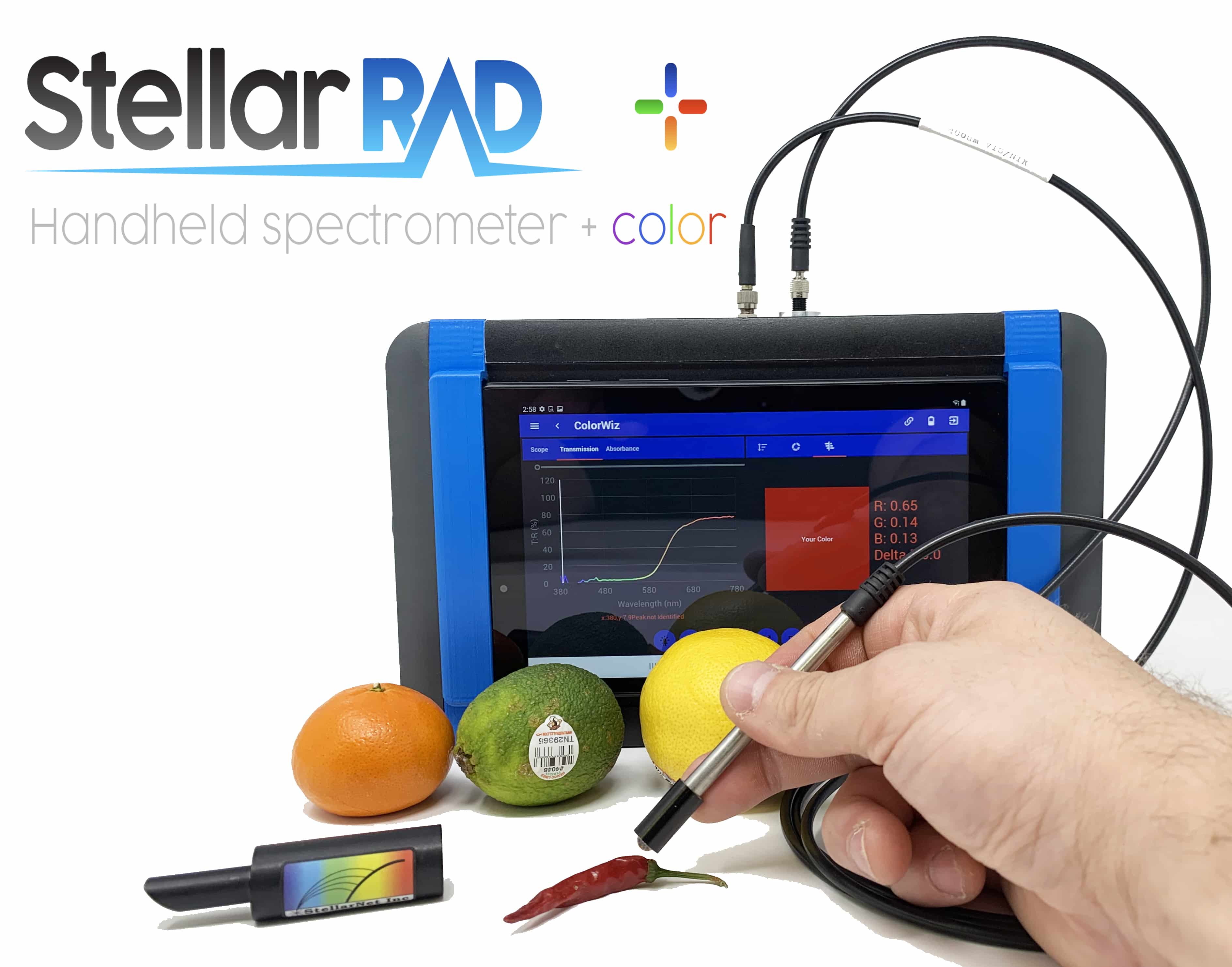

Modular Systemsblack-cave
StellarNet Modular Color Measurement Systems include a miniature spectrometer, light source, and accessory depending on your sample type. The StellarNet BLACK-Comet-CXR spectrometer has consistent resolution throughout 280-900nm and is a perfect low cost instrument for any color measurement application. As one of StellarNet’s concave grating models it has low stray light levels because there are no mirrors in its optical bench. It is engineered with no moving parts which results in shock proof durability, permanent alignment, and a ruggedness unmatched by any spectrometer in its field.

Integrated CASE StellarCase-ColorSystems
The StellarCASE-Color integrated portable case system includes interior mounting of spectrometer instrumentation pre-configured for “Open & Measure” application with no additional setup required. The system includes a top mounted tablet with pre-installed Real-time spectrometer operating software for CIELAB colorimetry & dE color difference measurement. Internal main power control system with ON, OFF, & Charge buttons. The pre-configured spectrometer equipment is covered with an acrylic sampling surface and the sampling fixture head for easy measurement & clean-up. The system battery has 8 hour lifetime for field and portable application. StellarCASE-NIR also available for NIR applications.


StellarNet Color Measurement Systems reliably measure CIELAB & Delta E* values. Applications include color measurements of food, beverages, industrial liquids, textiles, plastics, pharmaceuticals, and raw materials.



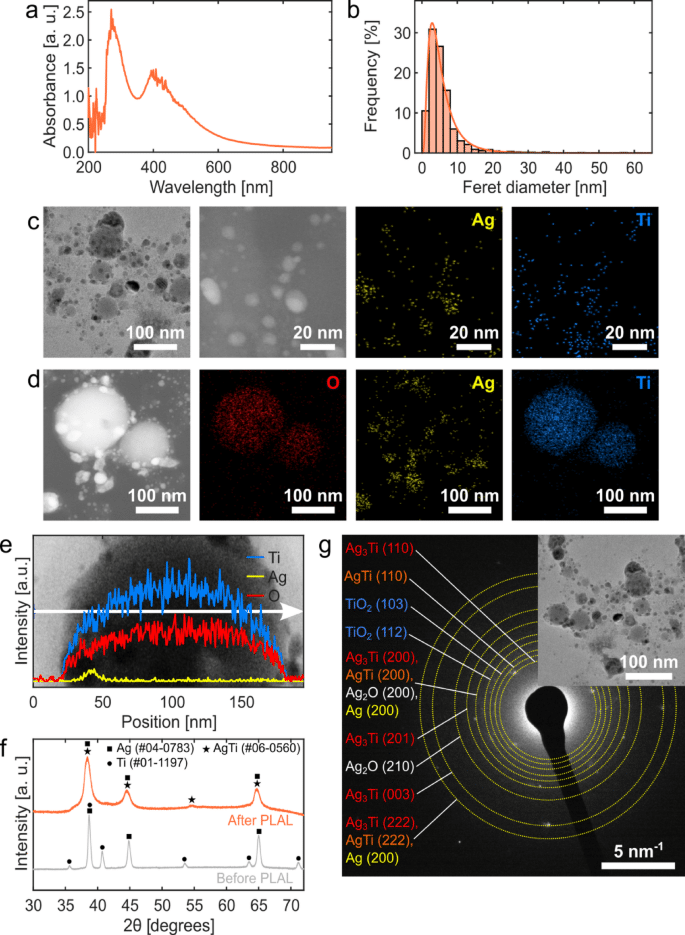

Current Customer Publications- click on the links to the right to see some current StellarNet customer applications involving color measurement…

Specular Reflectance Measurement 280-900nm using an SL1-Filter Tungsten Halogen Lamp, R600 Reflectance Probe, and a BLACK-Comet Spectrometer

Specular Reflectance Measurement 280-900nm using an SL1-Filter Tungsten Halogen Lamp, R600 Reflectance Probe, and a BLACK-Comet Spectrometer

Color Measurement Featured Accessories


Solid and Powder Samples

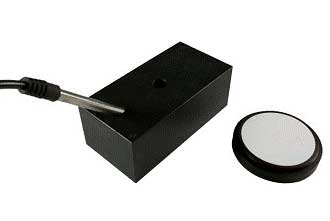

reflectThe RPH Reflectance probe is a popular accessory for color measurement.  The SL1-Filter Tungsten Halogen lamp with internal Color Equalization Filter (CEQ) is used to illuminate the RPH’s 7 input optical fibers.  At the probe tip the 7 optical fibers are bundled around one 600um collection fiber which returns the reflected light to the spectrometer. The RPH probe can be used with the RPH1 Reflectance Probe Holder block that maintains a 45 degree angle and user set distance from sample or the RPH3 is a Reflectance Probe Holder stand for 90° angle measurements. The RS50 white reflectance standard should be used to take your RTIP45white reference spectrum for all color measurement applications.

The RTIP45 is a black plastic tip has 45 degree angle and slides onto reflectance probe and locks to set position.

An integrating sphere, such as the IC2, can also be used in place of the fiber optic reflectance probe to improve measurement consistency. The IC2 has an illumination port as well as a baffeled collection port.

Translucent samplestransmissionstand
The TXF-4 transmission fixture includes two collimating lenses which allows the sample to be oriented vertically as shown above. Custom posts can be designed to increase pathlength Interchangeable parts allow the TXF-4 to be easily converted into the RPH-3 using the same base and stand.

Tfx-ICFor measuring the transmission of thick or multi-layered such as bulletproof glass or curved samples such as lenses where light scattering may be present the TXF-IC2 is recommended. The TXF-IC2 includes 1 collimating lens and 1 miniature 2″ integrating sphere with 5/8″ collection port.

Coarse Samples

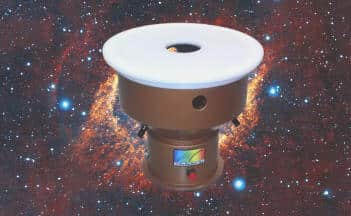

The RFX-3D Reflectance fixture has integrated light source to enable simple color measurement of solids and powders StellarNet 3-D Reflectance Fixtureby placing sample on directly on top. Additionally the RFX-3D has 3 fiber connectors to the spectrometer each positioned 120 degrees in a circle thus eliminating the need to rotate coarse grain samples. Reflectance from 3 positions is combined using special 3-to-1 fiber for spectrometer.

Liquid SamplesDip probe

For liquids, samples can be pipetted inside cuvettes and then placed into the CUV1 (4-way fiber optic cuvette holder) used for transmission, absorbance, fluorescence, and color measurements.  You may also use the DPH fiber optic dip probe for insitu measurements or our ATR probe for darker colored inks and dyes.  StellarNet also offers a variety of flow cells and industrial probes for process monitoring applications.

SpectroColorimeter Sample Spectra

RED Horseradish= L*=15.83, a*=29.598, b*=6.006
The BLACK-Comet-CXR 280-900nm, RFX-3D reflectance fixture, and an optical fiber can be used to measure the CIELab color of many types of samples. Simply place into a petri dish and set on top of the fixture. The RFX-3D collects diffuse reflectance from 3 different angles on a 1″ spot and is great for non-uniform and coarse grain samples!

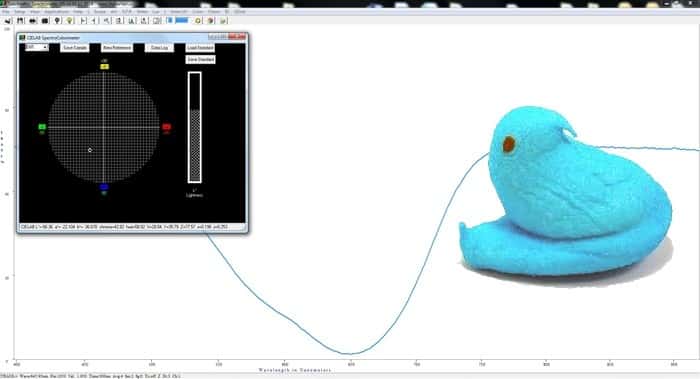

BLUE CHICK PEEP= L*= 66.36, a*= -22.104, b*=-36.68
A StellarNet low cost spectrometer can easily be configured for colorimetry using a light source and a reflectance probe.  The built in CIELAB app in the SpectraWiz software can measure quantified color data in milliseconds. These spectrometer systems are used for quality control, research, and production of food and beverages worldwide. Color consistency and control can be applied to many other industries and applications.

Item Description Price
Preconfigured Portable Case System for CIELAB Color Analysis
StellarCASE-Color Integrated portable case system includes interior mounting of spectrometer instrumentation pre-configured for “Open & Measure” application with no additional setup required. The system includes a top mounted tablet with pre-installed Real-time spectrometer operating software for CIELAB colorimetry & dE color difference measurement. Internal main power control system with ON, OFF, & Charge buttons, acrylic sampling surface & 8 hour lifetime for field and portable applications. $8795
Visible Spectrometers for Color Analysis
BLACK Comet Concave Grating spectrometer for UV-VIS SpectroColorimetry, model CXR (280-900nm). Price includes slit, UV detector upgrade, integrated order sorting filters, and interface cable. $2950
BLUE-Wave-VIS Miniature fiber optic spectrometer range 350-1150nm, 2048 element CCD detector. PC interface via high speed USB-2 connection. $2700
Fiber Optic Accessories for Solids or Powder samples
RFX-2 Reflectance fixture with integrated light source & F600-VIS-NIR fiber optic cable $625
RFX-3D Reflectance Fixture with 3D fiber connections. 1 with 3 fiber connectors to spectrometer each positioned 120 degrees in a circle thus eliminating the need to rotate coarse grain samples (requires F600-1TO3-NIR) $650
F600-1TO3-NIR-3D Armored splitter, 1 meter, 1 SMA to 3 SMA. Designed for use with RFX-3D $365
SL1-Filter 10,000 hour Tungsten and Krypton lamp, 2800 Kelvin color temp, 350-2300nm, operation outside U.S. requires UP12V adapter. The SL1-FILTER includes a 0.5” diameter filter holder nose cone. Customers can use a variety of filters for spectral attenuation, band pass, and more. Includes Color Equalization filter to improve blue sensitivity $595
R600-8-UVVIS-SR Reflectance probe for UV and Visible; 7 around 1 with 600um fibers $595
R600-8-VISNIR Reflectance probe for Visible and NIR; 7 around 1 with 600um fibers $495
F600-VIS-NIR Armored, 600um diameter single strand, multimode fiber optic cable with black PVC jacket and  2 SMA conectors-2 meter length for wavelength range 400-2200nm $160
RTIP-45 45° angled tip for reflectance probes; includes locking screw for positioning $125
RPH1 Reflectance Probe Holder for 45° angle measurements $80
RS50 Reflectance standard to set white reference, 50mm diameter $225
Fiber Optic Accessories for Liquid Samples
SL1-CUV * Integrated light source with standard 10 mm cuvette holder and F600 $655
DP400 Dip probe with 400um armored fiber, includes 10mm path length tip (requires SL1 light) $1825
DP400-TIP Additional tips for dip probe.  Specify 2, 5, 10, or 20mm path lengths $410
Visit our Accessories Page!

Free SpectraWiz Softwaresoftware
The powerful SpectraWiz® spectrometer software is provided free of charge with every spectrometer instrument. This includes drivers and customizable software for Windows. The SpectraWiz software is considered the “Swiss Army Knife of Spectroscopy” and may be used to accurately measure wavelength emissions, reflectance, transmission, absorption, concentrations, and absolute intensities. In addition to real-time spectroscopy, SpectraWiz® has built-in applications for SpectroRadiometry, SpectroColorimetry, ChemWiz chemistry lab concentration analyzer, and UV level monitors. Download SpectraWiz Software FREE


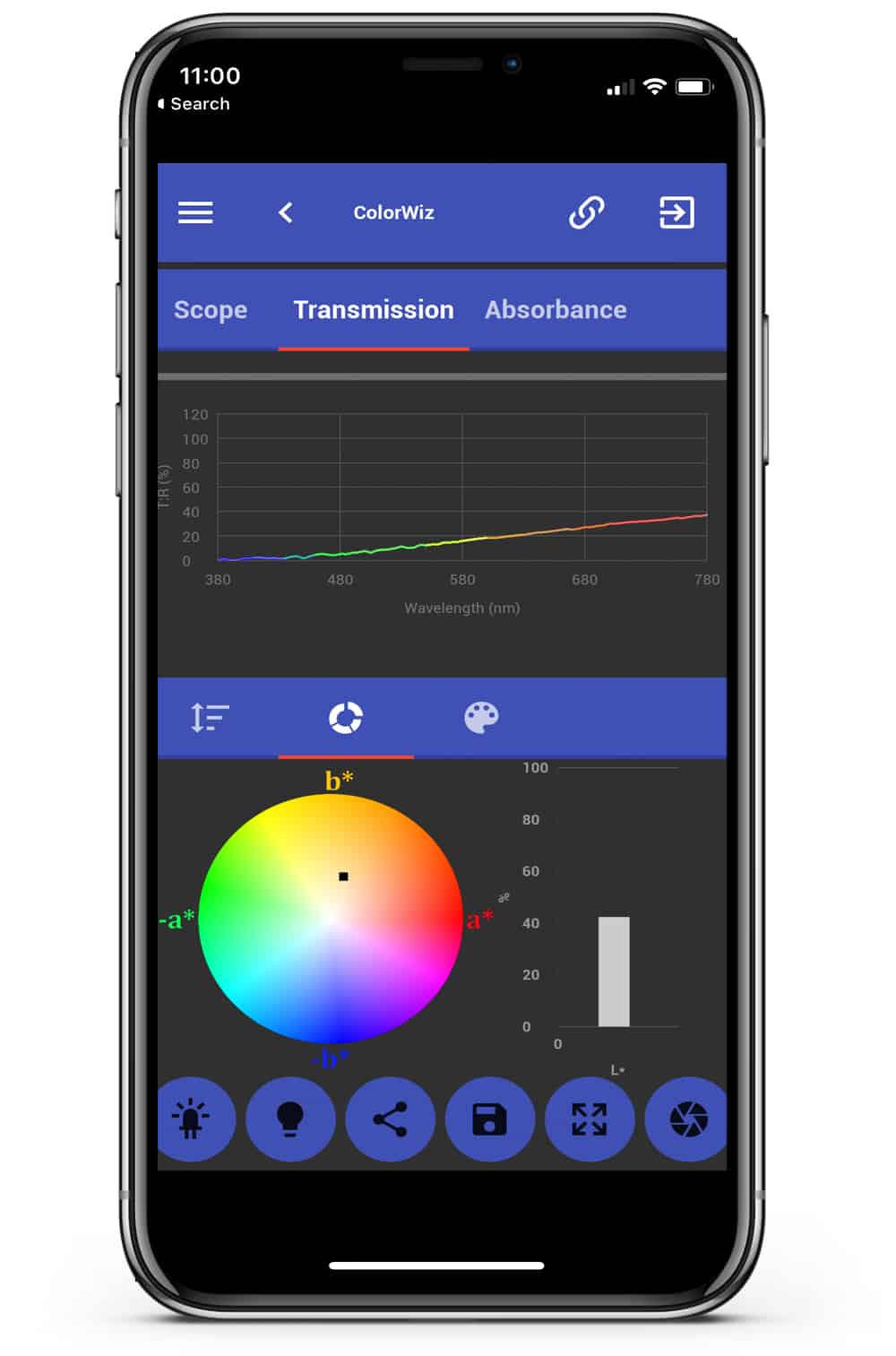

CIELAB color app measurements

cielab hi res

CIELAB color measurement application

  • L*: Brightness (0 to 100)
  • a*: Green (-a) to Red (+a)
  • b*: Blue (-b) to Yellow (+b)
  • Delta E* color difference
  • X Y Z tristimulus
  • xy chromaticity
  • Chroma
  • Hue
  • Select any illuminant (A-C,D50-D75,F1-F12)
  • Compare samples to saved color standards
  • Sample color values can be saved to text file

Measure Delta E* color difference
• Compare sample colors quickly & accurately

Color App and Data log work with live Spectra

Color and Data log work with live Spectra

• Color variation displayed as numerical value

• Identify variations better than your eyes

Save your own color standards for comparison
• Open color standard file for Delta E* value measured against target sample

Easily save color data into text log file
• Import log into Word or Excel for data management and QC reporting


For more information about the FREE SpectraWiz Software Suite and all our other customizable full source codes and programs click on the picture links below!

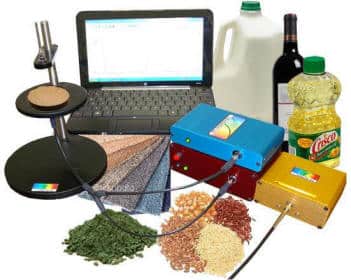

StellarNet Dual-Detector Super Range (DSR) spectrometer systems combine two instruDual DSR Color +NIR Chemometrics Applicationsments to cover the ultra violet, visible and near infrared portions of the electromagnetic spectrum. The two instruments work as one creating a unified spectral graph over the entire wavelength region, 200-2300nm.

Sample Color and Composition

  • Measure sample CIELAB color and quantitative composition simultaneously
  • Fast, easy results with little to no sample prep using reflectance fixture.
