Price ListModular Spectrometers, Systems, Light Sources, Accessories, Software, & Services
- Fiber Optic Cables- F600, F400, Y and Splitter Fibers
- Radiometric Accessories- Cosine light receptors, Integrating Spheres & Tubes
- Probes- Reflectance probes, Dip Probes, ATR
- Probe Holders, Reflectance Fixtures, & Accessories
- Cuvette Holders and Flow Cells
- Lenses and Couplers
- LED Measurement System
- Solar SpectroRadiometry System
- Display Measurement System
- Fluorescence System

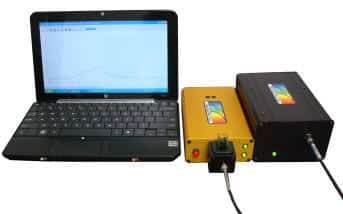

- UV-VIS Chemistry System
- Colorimetry System
- Dual SpectroRadiometer System
- Dual DSR System for Chemistry 220-2300nm
- Low cost Raman 785nm System
- Raman 785nm System
- Raman 532nm System

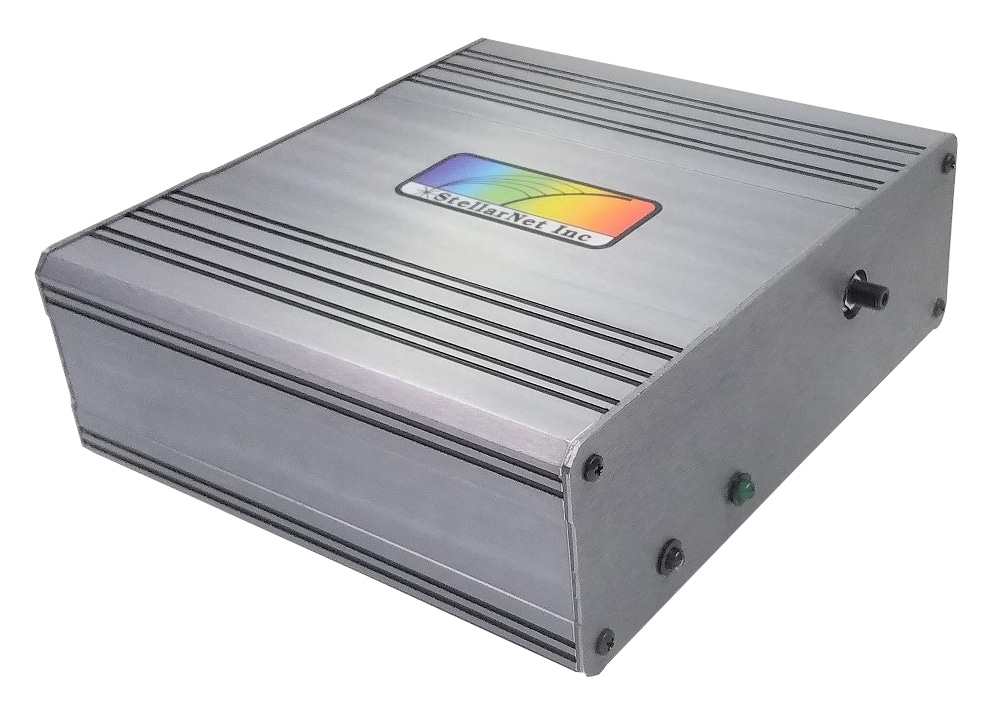

- Raman 1064nm System
- Haze Measurement System
Miniature SpectrometersSpectraWiz® Operation Software Included

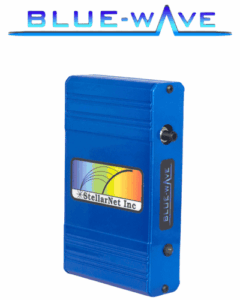

BLUE-Wave miniature fiber optic spectrometer, 2048 element CCD detector. PC interface via high speed USB-2 connection. Select model name from data sheet link below (eg: BLUE-Wave-NIR3). Price includes16-bit electronics upgrade, slit, integrated order sorting filters, and USB-2 interface cable.
UV detector upgrade (UDET) =$158 , UVN detector upgrade=$500, DLENS upgrade =$150

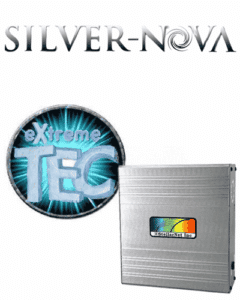

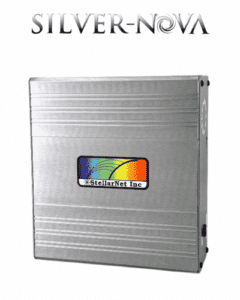

Silver-Nova-TEC-X2 Compact research grade spectrometer for > 190-1110nm range, TE cooled 2048 element CCD detector with enhanced UV coating & Detector Lens assembly for extreme sensitivity, 600g/mm dual blaze grating for super range efficiency, integrated order sorting filters, slit-25, USB-2 interface cable, +5VDC, and Power Adapter. Includes the 2-Stage eXtreme TEC detector upgrade to maintains a constant -30 degrees below ambient and increase signal to noise by reducing noise effects by over %80 at long exposures (<3000ms). TEC includes a sealed and isolated detector enclosure with specialized heat sink and air flow design for added stability and cool operation.

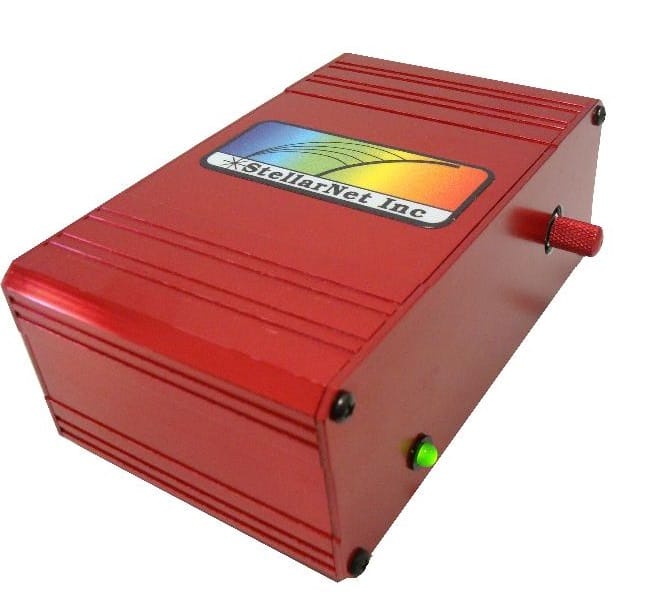

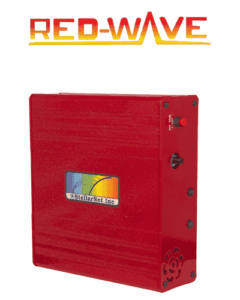

RED-Wave-NIRX-SR InGaAs fiber optic spectrometer with cooled detector, 512 element PDA, range 900-2300nm, 16nm resolution with 25um slit, 16bit digitizer, high speed USB-2. Price includes slit, integrated order sorting filters, +5V power supply and USB-2 interface cable.
Extremely Low Noise Detectors Currently Available!
RED-Wave-NIRX-SR InGaAs fiber optic spectrometer with cooled detector, 1024 element PDA, range 900-2300nm, 16nm resolution with 25um slit, 16bit digitizer, high speed USB-2. Price includes slit, integrated order sorting filters, +5V power supply and USB-2 interface cable.
Extremely Low Noise Detectors Currently Available!
|DLENS Adds cylindrical lens on detector window of BLUE-Wave spectrometers for 3x signal gain when using 600um or 1000um fiber optic input cables.||$150|
|UDET Detector upgrade for UV responsivity below 350nm||$158|

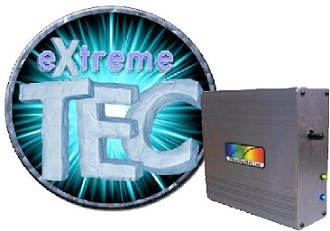

|TEC Adds integrated Thermo Electric Cooler (TEC) to spectrometers to allow long detector integration times (>3000ms) and improve signal to noise by 66%. Includes new sealed and isolated detector enclosure with specialized heat sink and air flow design for added stability and cool operation. Great for low light applications.||$1650|
|Jack 1-IN Trigger TTL Input to Enable Spectrometer Scan||$175|
|Custom Range Many spectrometers can be configured with a custom range. Please discuss your requirements with a StellarNet applications scientist. Custom orders are non-returnable and require prepayment.||$0|
SL3 High Power UV Calibration Light Source and power supply. Includes USB drive with lamp spectral intensity data in nm increments and Certificate
SL4 High Power UV-VIS Light Source is a miniature Deuterium and Tungsten halogen light source that covers the 190-2500nm range. The lamp combines the Deuterium Spectrum with the Tungsten Halogen spectrum to form a single optical path. The deuterium and halogen lamps can be individually turned on or off and have a front and rear panel shutter control.
SL4-CAL High Power UV-VIS Calibration Light Source and power supply. Includes USB drive with lamp spectral intensity data in nm increments and Certificate.
SL5 miniature deuterium halogen lamp for UV-VIS-NIR, 190-2500nm, shutter and lamp controls, operation outside U.S. requires UP12V adapter. Low output power recommended for absorption and transmission measurements.
– Add Filter holder $250. Add DCX Lens for 2-3x gain $100 (requires filter holder)
UV-LED additional UV LED for use in SL1-LED available wavelengths 295, 345, 365, and 390nm (check for availability & price). Price is per LED.
UIS-LS The Uniform Illumination Sphere Light Source provides constant and uniform spectral output and luminance values. The system consists of a 6″ integrating sphere with mounted NIST traceable calibration bulb. The light source comes with spectral output data files for Radiance and Irradiance from 300-1100nm. Comes with mounting tripod. UIS Power Supply for 5 incremental steps to full power is $895 and upgraded 10 step capability is $1395 upgrade.
IS-Lamp is a calibrated 10-Watt VIS-NIR light source mounted on a 2″ port plug. Includes data USB for 400 -1050nm for total flux Watts/nm. Includes power supply and certificate.
IS-Lamp-HP is a calibrated 50-Watt VIS-NIR light source mounted on a 2″ port plug. Includes data USB for 400 -1050nm for total flux Watts/nm. Includes power supply and certificate.
Light Source Accessories and Upgrades
|SL1B||Replacement bulb for SL1 Tungsten light source||$75|
|SL3B||Replacement bulb for SL3 Deuterium light source (item must be returned for installation)||$600|
|SL1-BAT||optional +5VDC interface for BP1 battery operates 2 hours with spectrometer||$50|
|LENS-DCX||Installs in filter nose base for 7-10x gain: available for SL1-Filter, SL3||$100|
|Filter-U330||0.5 inch diameter filter for SL3 removes deuterium spikes||$50|
|Filter-ND50||~0.5 inch diameter 50% T neutral density filter||$50|
|Filter-AT7||0.5 inch diameter sanded fused silica attenuation filter ~7%T||$50|
|F400YBNIRUVSR||400um fiber optic Y cable bundle, 0.5 meter, solarization resistant connects SL1 + SL3||$380|
|SL2-YCABLE||Allows operation of SL2 and spectrometer from same +5VDC power adapter.||$15|
|Laser Attenuator||Attenuation accessory for 532 or other constant output Raman laser sources. Requires Part # FC-Splice.||$325|
Fiber Optic Accessories
Fiber Optic Cable Pricing
|F400-UVVis-SR||Armored, Solarization Resistant, 400um diameter single strand, multimode fiber optic cable for Deep UV application with black PVC jacket and 2 SMA connectors-2 meters length for wavelengths <400nm||$175|
|F400-VISNIR||Armored, 400um diameter single strand, multimode fiber optic cable with black PVC jacket and 2 SMA conectors-2 meter length for wavelength range 400-2200nm||$155|
|F400YBNIRUVSR||Y-cable bundle, 0.5 meter, 4 SR & 3 NIR fibers connects SL1+SL3 lamps||$380|
|F600-UVVis-SR||Armored, Solarization Resistant, 600um diameter single strand, multimode fiber optic cable for Deep UV application with black PVC jacket and 2 SMA connectors-2 meters length for wavelengths <400nm. Buy Online||$190|
|F600-VISNIR||Armored, 600um diameter single strand, multimode fiber optic cable with black PVC jacket and 2 SMA conectors-2 meter length for wavelength range 400-2200nm. Buy Online||$160|
|F600-Y-UVSRNIR||Armored Y cable, 1 meter, 1 SMA to 2 SMA, SR+NIR||$380|
|F600-Y-VISNIR||Armored Y cable, 1 meter, 1 SMA to 2 SMA, all for NIR||$280|
|F600-1TO3-SR||Armored splitter, 1 meter, 1 SMA to 3 SMA, all Solarization Resistant||$365|
|F600-1TO3-NIR||Armored 600um fiber optic cable splitter, 1 meter length, 1 SMA (with 3 fibers) to 3 SMA||$365|
|F600-1TO4-SR||600um octopus cable with 4 outputs- 1 meter length||$620|
|F1000-UVVis-SR||Armored, Solarization Resistant, 1000um diameter single strand, multimode fiber cable for UV application with black PVC jacket and 2 SMA connectors-1 meters length for wavelengths <400nm||$210|
|F1000-VISNIR-1||Armored, 1000um diameter single strand, multimode fiber optic cable with black PVC jacket and 2 SMA conectors-1 meter length for wavelength range 400-2200nm||$180|
|F400/meter||per additional meter, armored with black PVC jacket||$70|
|F600/meter||per additional meter, armored with black PVC jacket||$110|
|F1000/meter||per additional meter, armored with black PVC jacket||$150|
|Custom Fibers||StellarNet builds custom fibers to meet your application||ContactUs|
|CR2||Miniature cosine receptor for UV-VIS–NIR, 1/4 inch diameter with fiber optic cable attachment for irradiance measurements. Calibration performed using NIST traceable lamp operating from 200-1700nm. Buy Online||$180|
|CR2-AP||Aperture for CR2, allows intensity measurement of sources that are 10 times brighter.||$165|
|Col-Tubes||Cosine receptor holder with field of view reducing extension tubes. Can be used as a tripod or handheld pointer (gun) for the cosine receptor accessory. Comes with a set of 3 field of view reducing “collimating tubes” with 10, 20, and 30 deg FOV. Custom lengths also available. Buy Online||$195|
|CRLENS||Cosine receptor lens assembly reduces the field of view from 180 degrees to a small spot. Adjustable focus allows variable distance from target surface||$250|
|CR2-RA||is a 90° right-angle Cosine Receptor cube||$375|
|CR2-OR||Miniature cosine receptor for UV-VIS–NIR1/4 inch diameter with fiber optic cable attachment for irradiance measurements with O-Ring seal for underwater applications||$230|
|CR2-TP||miniature Tri-Pod stand for CR2 with 3 folding legs, setup any orientation, case included.||$65|
|IC2||Integrating Cube (Light Sphere), 2 inch cube with 5/8 inch input port, 1 SMA fiber output, Barium Sulfate white coating. Buy Online||$495|
|IC2-TP||miniature Tri-Pod stand for IC2 with 3 folding legs, setup any orientation, case included||$65|
|IS6||is a 6” integrating sphere with a 2.0” input port, 1 SMA fiber optic output, and internal white coating. Buy Online||$1,745|
|IS-Lamp||is a Calibrated Miniature 10 Watt fiber optic VIS-NIR light source for the IS6 mounted on a 2″ port cap, 400-1050nm, NIST traceable. Includes lamp with data file used to calibrate the system for total flux measurements in watts/nm and lumens/nm.||$550|
|IS-SMA||is a SMA connector mounted on a 2″ port cap with internal white coating. Allows direct connect of SMA terminating optical fibers to integrating sphere||$150|
|IS-RED||is a 2″ port cap with reduced sized 1″ diameter aperture with internal white coating||$150|
|IS12||is a 12” integrating sphere that allows for internal mounting of devices for light measurement such as discrete LEDs, arrays, and bulbs. The sphere opens for simpleaccess to mounting devices. IS12 Sphere includes lamp with data file used to calibrate the system for total flux measurements in watts/nm and lumens/nm.||$3,495|
|IT5||is a 5′ integrating tube that allows for internal mounting of tube lights such as T8/T5. The sphere opens for simple access to mounting devices. IT5 Tube includes lampwith data file used to calibrate the system for total flux measurements in watts/nm and lumens/nm.||$6,933|
|FCI||Flash Capture Interface for spectrometer trigger||$200|
Reflectance, Transmission, & Raman Probe Pricing
|R600-8-VisNIR||Reflectance/Fluorescence Probe for Visible and Near IR; 7 around 1 with 600μm fibers||$595|
|R600-8-UVVIS-SR||Reflectance/Fluorescence Probe for UV and Visible; 7 around 1 with 600μm fibers||$595|
|RTIP45||45 degree angled tip for Reflectance probes; includes locking screw for positioning||$125|
|RTIP-Lens||Lens tip with focus to <1mm for the R600-8-UVVIS-SR reflectance probe||$185|
|R600-Max||Upgrades R600-8-VisNIR to 6 600um collectors for 3-4x signal gain||$795|
|R400-7-2R-VIS||Armored 400um reflectance probe, 2 read fibers and 5 illuminating||$895|
|DP400-VISNIR||Dip Probe for Vis-NIR||$1,825|
|DP400-UVVIS-SR||Dip Probe for UV-Vis – solarization resistant||$1,825|
|DP-TIP||Additional tips for DP400, specify path length of 2/5/10/20mm||$410|
|Raman- Probe-532||Attaches to 532nm laser via FC/APC and spectrometer via SMA 905, has integrated Raman filters and optics (working distance– 4.5mm), high efficiency collection fibers for StellarNet Raman spectrometers||$3,545|
|Raman- Probe-785||Attaches to 785nm laser via FC/APC and spectrometer via SMA 905, has integrated Raman filters and optics (working distance– 4.5mm), high efficiency collection fibers for StellarNet Raman spectrometers||$3,245|
|Raman- Probe-1064||Attaches to 1064nm laser via FC/APC and spectrometer via SMA 905, has integrated Raman filters and optics (working distance– 4.5mm), high efficiency collection fibers for StellarNet Raman spectrometers||$3,545|
|SATR||Industrial Sapphire ATR Probe, 230-2200nm, index of refraction up to 1.5 (-50 to 260 deg C max 1200 psi), 3 meter, 7x200 illuminate & 7x200um read||$5,980|
|DRP1||Industrial Diffuse Reflectance Process Probe, 3 meter, 7 x400 illuminate & 1x600 read fiber, specify UV/NIR (-50 to 260 deg C max 500 psi)||$3,575|
Probe Holders, Fixtures, and Accessories
|RPH2||R600-8 Reflectance probe holder maintains 45 and 90 degree angle for color measurement of solids.||$125|
|RPH3||Reflectance Probe Holder stand for 90° angle measurements. Includes base plate, vertical rod, & positioning mount for R600 probes.||$275|
|RPH4||Raman Probe Holder Block for the Raman- Probe-785. Accepts vials and solid samples.||$275|
|RTIP45||5° angled tip for Reflectance probes; includes locking screw for positioning||$125|
|RFX-1||VIS-NIR Reflectance Fixture with integrated 10 watt halogen bulb||$295|
|RFX-2||VIS-NIR Reflectance Fixture with integrated 10,000 hour 5 watt halogen bulb for color measurements||$495|
|RFX-3D||Reflectance Fixture with 3D fiber connections. 1 with 3 fiber connectors to spectrometer each positioned 120 degrees in a circle thus eliminating the need to rotate coarse grain samples (requires F600-1TO3-NIR)||$650|
|TXF-1||Transmission fixture with 1cm gap for sample insertion. 2 way fiber attachment includes 2 LENS-QCOL collimators. Measures sample transmittance and allows absorbance measurement of 1cm cuvettes.||$450|
|TXF-4||Transmission fixture with variable path length (up to 10cm). Stands vertical only with samples placed on a shelf. Includes 2 lens collimators (see LENS-QCOL and LENS-COL).||$495|
|TXF-IC2||Vertical transmission fixture with variable path length, includes 1 collimating lens and 1 miniature 2″ integrating sphere with 5/8″ port. For thick and curved samples.||$715|
|RPH-3K||Horizontal bar with probe mount lock -adds to TXF-4 for use as RPH-3||$100|
|TXF-4K||Horizontal plates with 2 LENS-QCOL -adds to RPH-3 for use as TXF-4||$275|
Cuvette Holders & Flow Cell Pricing
|CUV1||4-way fiber optic cuvette holder for measuring absorbance, transmittance, and fluorescence. Includes 2 Lens-Q-Col||$450|

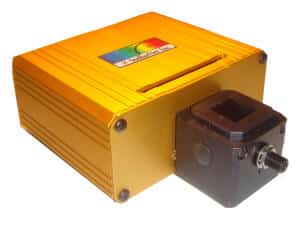

|CUV–F||fiber optic cuvette holder for SL1-LED excitation with 2 collimating lens for measuring fluorescence. F600Y fiber included for dual pickup||$765|
|CUV-TEMP||fiber optic cuvette holder for measuring absorbance and fluorescence. Includes temperature control from -30°C to +105 °C||$4,660|
|QCA-5||Set of Five Research Grade Quartz Cuvettes with 1cm Path Length and Two Polished Sides for Absorbance Measurements.||$450|
|QCV-5||Package of 5 Research Grade Quartz Cuvettes with 1cm Path Length and Four Polished Sides for Fluorescence.||$850|
|Raman Vial||50 Qorpak GLC-00980 Borosilicate Glass 4mL Clear Type I Screw Thread Vial, with Green Thermoset F217 and PTFE Lined Cap Attached, 15mm Diameter x 45mm Height||$87.5|
|MFC||10 mm optical path SMA-Z Cell with Fused Silica Windows (Specify Ultem, Plexiglas, Steel, Teflon or PEEK)||$995|
|MFFC||FFC is a mini fluorescence flow cell that has a fiber optic cable input to send excitation energy through a fused silica window into a 2-mm inner-diameter sample compartment. Emitted energy is collected by a second fiber, oriented at 90°, that connects to a spectrometer configured for fluorescence||$995|
|TCP1||Industrial Transmission Cell 1/4″OD flow, 1mm to 1000mm, 400um fiber, specify UV/NIR and path (-50 to 260 deg C max 3000 psi)||Start $3,500|
|IMFC||Industrial Mini Flow Cell, 1mm bore, 1/16 tubing, specify path length 1/10/20/40mm, (-20 to 150 deg C max 5000 psi), 400um fiber 1 metespectrometer to other optical devices such as microscopes and telescopes||$2,920|
Lenses and Couplers Pricing
|LENS-QCOL||lens collimator for UV/VIS/NIR 190-2000nm, attaches to fiber tip to focus distant light into fiber tip. Screws directly in CUV1 and TXF1. Buy Online||$180|
|LENS-COL||lens collimator for VIS/NIR 350-2200nm, attaches to fiber tip to focus distant light into fiber tip. Screws directly in CUV1 and TXF1. Buy Online||$165|
|SMA-Coupler||Coupler for Direct Attach to Spectrometer. Buy Online||$35|
|Splice Bushing||Coupler for 2 fiber optic cables. Buy Online||$15|
|FC-Splice||Enables the connection of two FC fibers||$35|
|SMA-FC||adapter used to adjoin optical components with different connection types, SMA-905 and FC||$100|
|SMA-C-Mount||SMA-905 adapter allows connection of the spectrometer to other optical devices such as microscopes and telescopes||$150|
|VFT||Vacuum Feed Through, 600 micron UV/VIS, mounted on a 275″ CF Flange with male SMA-905 connectors on each end. Many other options available||$895|
|In-Line Filter Holder||0.5" diameter in-line filter holder. SMA905 connection on each end||$150|
Spectroscopy Standards Pricing
|RS50||50mm diameter white reflectance standard made of Halon. It is used to take reference measurements using the R600 Reflectance Probe. The white standard will reflect >97% of the light from 300-1700nm.||$225|
|RS-HR||High-reflectivity Specular Reflectance Standard is a mirrored, fused-silica standard that can be used as a reference when measuring surfaces with high specular reflectance such as optical substrates, coatings, and metals||$225|
|TF-STD1||Thin Film standards for thickness measurement verification. Includes Si substrate for reference with 2 additional substrates with 100nm and 1000nm thickness of SIO2. Additional thickness standards (10nm and 10,000nm) can be added to the set for $100 each.||$550|
|Haze-Stds||Set of 3 Haze Standards. Choose between 1%, 5%,10%, 20, 30%. Includes ISO17025 certificates.||$2,450|
Preconfigured Spectrometer SystemsFactory installed to order with spectrometer instrumentation & software
LED-System Preconfigured LED Measurement System with IS6 6″ integrating sphere, BLUE-Wave-VIS spectrometer for spectral range 350-1150nm, F600-VISNIR fiber optic cable, & RAD-CAL NIST traceable Radiant Flux calibration in Watts/nm. SpectraWiz Spectroscopy software is included FREE. Preconfigured system also includes an IS-Lamp NIST traceable calibration source for system recalibrations & DUT absorption corrections as well as an IRRAD-CAL-DOC Certificate of Calibration.
Go to LED Measurement page for more configurations…
Solar-Rad Preconfigured Solar Measurement system features everything needed to perform light measurements over the 300-1100nm wavelength range (with deep UV options available). System includes BLACK-Comet-CXR-SR spectrometer (220-1100nm), F600-VIS-NIR fiber optic cable, CR2 cosine receptor, CR2-TP positioning tripod, IRRAD-CAL-UVN NIST traceable calibration, and IRRAD-CAL Certificate of calirbation. Go to Solar Measurement page for more configurations…

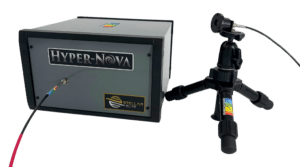

Display-System Preconfigured SpectroRadiometer system routine analysis of all types of displays and monitors. System consists of a SILVER-Nova spectrometer, F600-VISNIR fiber optic cable, CR2 cosine receptor, CRLENS, RAD-CAL Radiance calibrations in (W/m^2/sr/Cd/m^2), RAD-CAL low light calibration, & RAD-CAL-DOC NIST traceable certificate. Go to Display page for more configurations…
Fluor-System Preconfigured Fluorescence system for steady state analysis of liquid samples. System consists of SILVER-Nova spectrometer with 200um slit installed, SL1-LED, CUV-F fluorescence cuvette holder that includes a F600-Y-VISNIR fiber optic cable, and SpectraWiz Spectroscopy Software. Go to Fluorimetry page for more configurations…
Color-System Preconfigured Colorimetry system for color measurements of solid samples. System consists of BLACK-Comet-CXR-100 spectrometer, SL1-Filter tungsten halogen lamp, R600-8-VisNIR reflectance probe, RS50 white reflectance standard, RPH probe holder, and SpectraWiz Spectroscopy Software. Go to Colorimetry page for more configurations…
Dual-Radiometer This system is a Dual Spectrometer system that includes a BLUE-Wave-UVN spectrometer (250-1100nm) and a DWARF-Star NIR spectrometer (900-1700nm). Both of these spectrometers are coupled via a F600-Y-UVSRNIR fiber optic cable and are attached to a CR2 cosine receptor and CR2-Tp tripod. The entire system is calibrated against NIST traceable source for spectral irradiance measurment in W/m^2 from 250-1700nm (item: IRRADCAL-UVN + IRRADNIR-CAL). Preconfigured system comes with additional CR2-AP aperture and IRRAD-CAL DOC certificate of calibration. See Dual-DSR Page for more models and configurations.

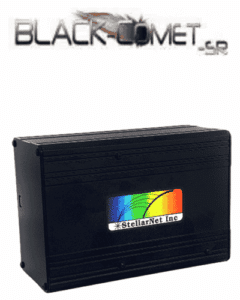

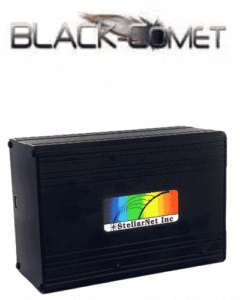

Dual DSR-CXR-512 (Dual Detector Super Range) BLACK-Comet concave grating spectrometer plus RED-Wave NIR spectrometer with SL1-Filter lamp, F600-Y-VISNIR splitter fiber, and DP400 dip probe for in situ absorption measurements 280-2300nm. See Dual-DSR Page for more models and configurations.

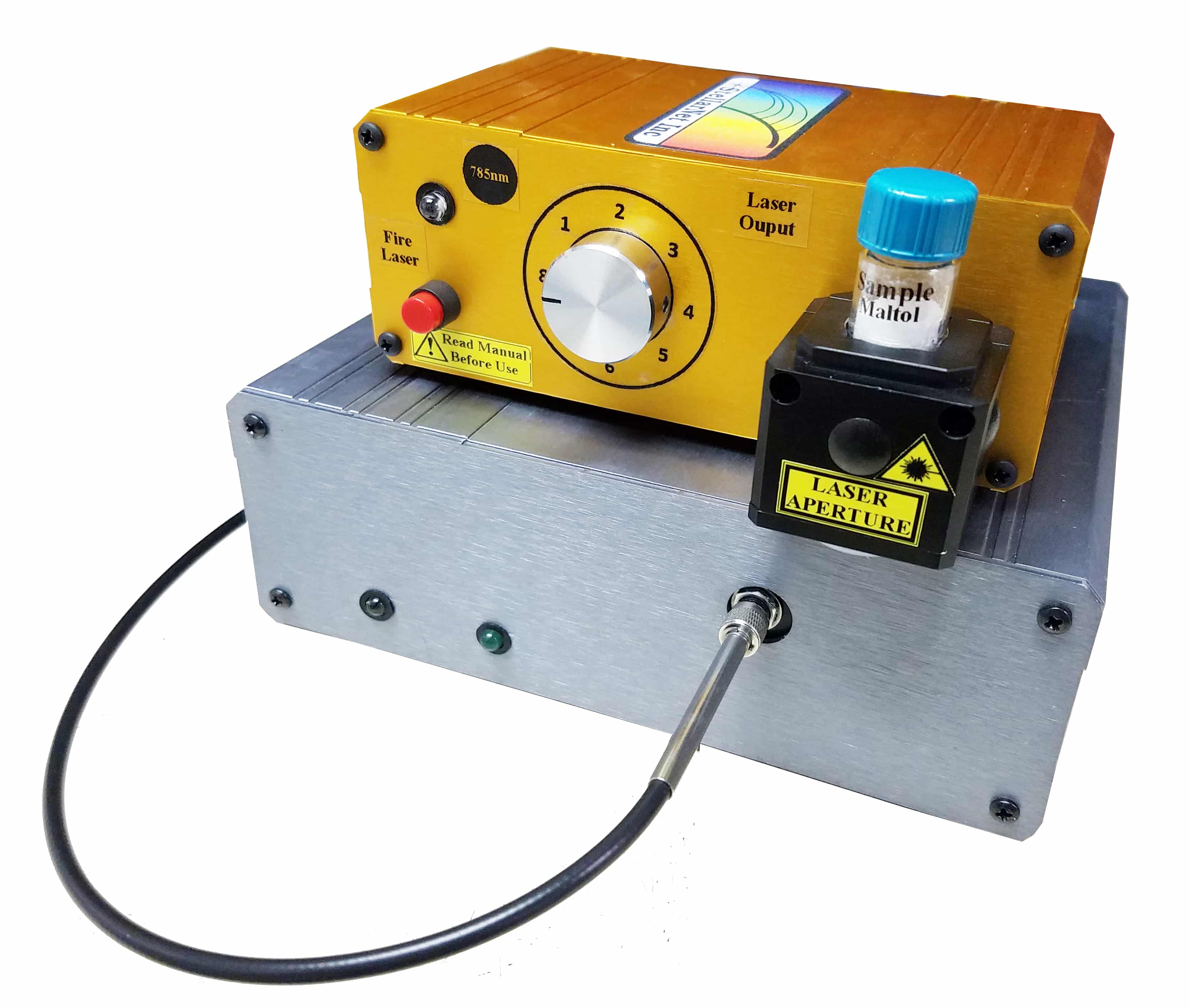

Raman-785-Vial System – The Preconfigured low cost 785nm Raman Spectrometer system contains everything you need for Raman Spectroscopy at 785nm and can perform quick identification of a variety of liquid, solid, or powder samples. The System comes with a Ramulaser-Vial Raman laser with adjustable power from 0-499mW with an integrated vial holder and Raman collection optics and the Raman-HR-TEC thermo electrically cooled Raman spectrometer for high resolution and high sensitivity. A set of 25 Raman Vials and Raman safety goggles are also included. More Raman System Configurations…
Raman-785 System – The Preconfigured 785nm Raman Spectrometer System contains everything you need for Raman Spectroscopy at 785nm and can perform quick identification of a variety of liquid, solid, or powder samples. The System comes with a Ramulaser-785 Raman laser with adjustable power from 0-499mW, the Raman-HR-TEC thermo electrically cooled Raman spectrometer for high resolution and high sensitivity, and a Raman probe and RPH4 probe holder with sample vial chamber. Preconfigured system also comes with a set 25 Raman Vials, SER-30 package of SERS substrates and Raman safety goggles. More Raman System Configurations…

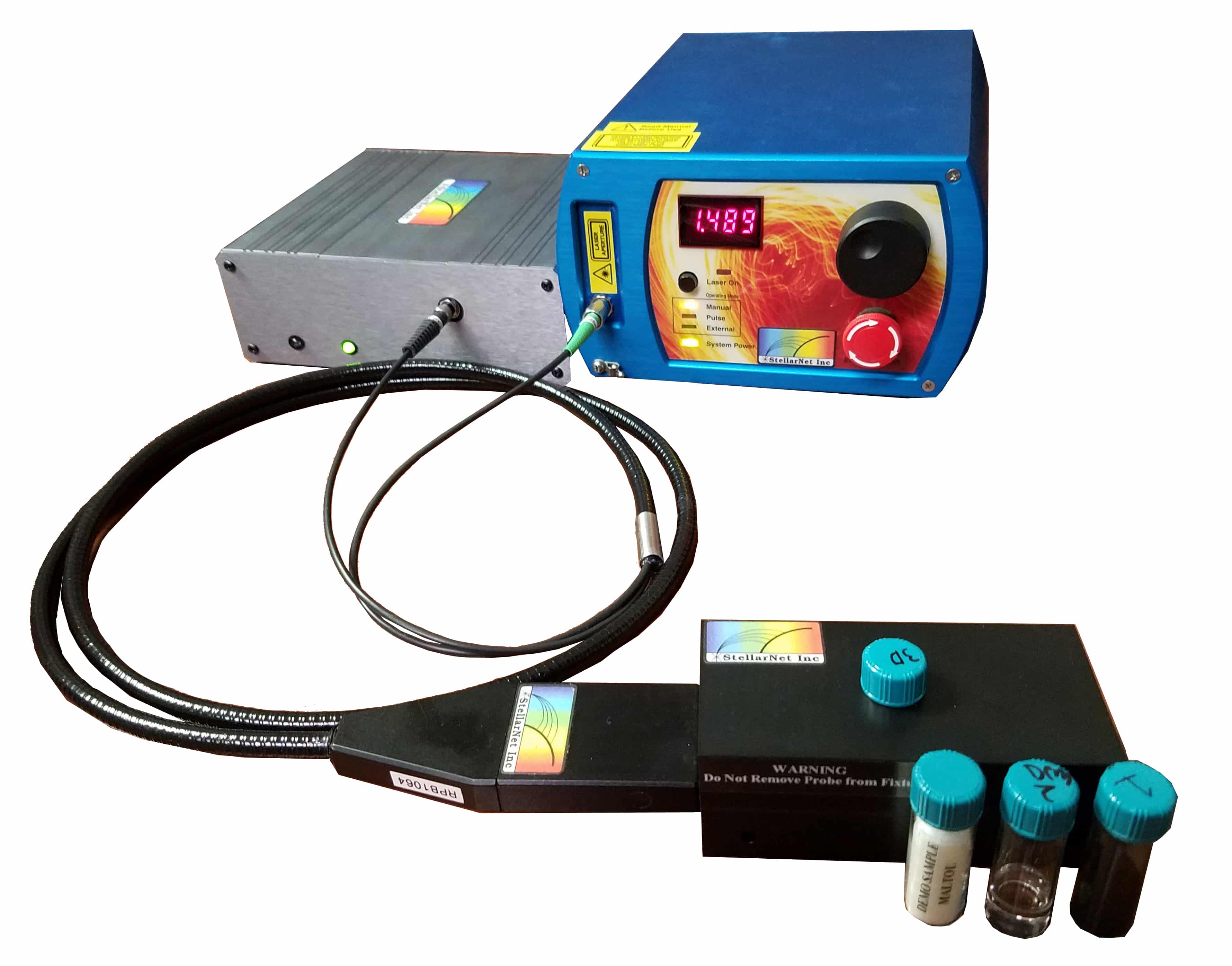

Raman-532 System – The Preconfigured 532nm Raman Spectrometer System contains everything you need for Raman Spectroscopy at 532nm and can perform quick identification of a variety of liquid, solid, or powder samples. The System comes with a Laboratory Raman laser (Lab-LS-532) with 100mW output power, the Raman-HR-TEC thermo electrically cooled Raman spectrometer for high resolution and high sensitivity, and a Raman probe. System also comes with a 25 pack of Raman Vials and safety goggles. More Raman System Configurations…
Raman-1064 System – The Preconfigured 1064nm Raman Spectrometer System contains everything you need for Raman Spectroscopy at 1064nm and can perform quick identification of a variety of liquid, solid, or powder samples. The System comes with a Ramulaser-1064 Raman laser with adjustable power from 0-499mW, the Raman-HR-TEC-IG (1024 pixel) thermo electrically cooled Raman spectrometer for high resolution and high sensitivity, and a Raman probe. System also comes with a 25 pack of Raman Vials and safety goggles. More Raman System Configurations…

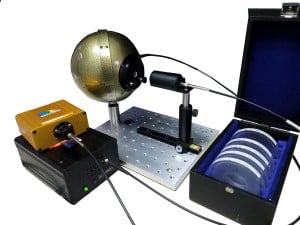

Stellar-Haze System – Our preconfigured Total Optical Transmittance and Haze Measurement system includes a compact spectrometer, fiber optic light source, and integrating sphere designed with a haze diffuse aperture to allow comparison of total transmission to diffuse (>2.5 degrees). The system will also come with the SpectraWiz-Haze program that calculates haze values in real time and displays all spectra for easy viewing.More Raman System Configurations…
StellarCASE Analyzers for "Open & Measure" ApplicationBrand New Products
Stellar-Rad – The StellarNet Handheld-Radiometer measures illuminance, chromaticity, dominant wavelength and the complete spectral distribution of all visible light 350-1100nm (with options for Infrared or Ultra Violet). Full spectral data is collected using <1nm research grade optics. It has a 5x7“, touch-pad tablet interface that’s both ergonomic and user-friendly. UV upgrade for 250-1100nm range for $500.
Spectrometer and Lamp Calibration ServicesWe offer a variety of NIST traceable calibration services for our customers. If you have questions or need a rush service, contact us today!
|IRRAD-CAL||Irradiance calibration service in Watts/m^2 using NIST traceable lamp that covers 300-1100nm. Requires fiber optic cable and cosine receptor attachment such as CR2, IC2, IS4, IS6, IS8, or IS20.||$250|
|IRRADUV-CAL||Irradiance calibration service for 200-600nm. Requires UV-SR fiber optic cable and CR2 cosine receptor||$250|
|IRRADNIR-CAL||SpectroRadiometric Calibration service for NIR range 900–1700nm||$250|
|RAD-CAL||Radiant power calibration in Watts/nm 300-1100nm or 900-1700 nm also for LED Lumens/nm||$250|
|RAD-CAL-SR||Radiance calibration in Watts/sr/m^2 for Candela (Cd/m^2/nm) – requires CR2-LENS||$250|
|IRRAD-CAL-Low||Description: Low-light level calibration to measure 10x lower intensity emissions. Please specify wavelength range needed. Certification document not included. Please Note: Calibration replacement file costs $125.00. ||$250|
|RAD-CAL-SR-Low||Radiance calibration in Watts/sr/m^2 for low light Candela (Cd/m^2/nm) – requires CR2-LENS. Low light calibration performed with Lens assembly only||$250|
|IRRAD-CAL-Fast||Expedited Calibration Service guaranteed <1.5 weeks. Contact for availability||$250|
|IRRAD-CAL-DOC||Optional Calibration Certificate with details of calibration instrumentation and date and signature of calibration technician||$125|
|RE-CAL||Annual NIST traceable calibration service, instrument inspection, and x-axis realignment. Choose one from any of our offered calibration services including IRRAD-CAL for spectral irradiance, RAD-CAL-SR for spectral radiance, RAD-FLUX for radiant flux, and low light calibration options. Each additional calibration is $250 with an option for a calibration certificate.||$500|
|SL1 RE-CAL||Annual NIST traceable calibration service||$350|
|SL3 RE-CAL||Annual NIST traceable calibration service||$350|
|IRRAD-CAL-Replacement File||Copy of original calibration file supplied in electronic format by e-mail and/or replacement USB key.||$150|
|Please contact a StellarNet Sales Representative for price information on StellarNet instrument upgrades||Contact Us|
|Out of warranty repairs are to be determined after instrument return and evaluation||Contact Us|
SoftwareSpectraWiz® executable program, DLL driver, and LabView program for Windows XP/VISTA/7
|SpectraWiz®||Real-time operating software for Windows 9x/XP/VISTA/7 includes integrated applications for SpectroRadiometry*, traditional Spectroscopy (absorbance/transmission/reflectance), CIELAB colorimetry, LED color analysis*, ChemWiz chemical concentrations, UVabc* monitors, Solar Match Monitor, episodic capture for time series analysis.(*=requires irradiance calibrations), and much more.||FREE|
|SpectraWiz LV®||Customizable Programs in LabVIEW ver 5.x & 6.x & 7.x & 8.x – Performs AU, %T, & reflectance spectroscopy with timeline trend graphs||FREE|
|SpectraWiz® VBA||Customizable Visual Basic Automation (VBA) program for direct spectrometer operation from Excel spreadsheet. Setup and run from Excel in absorbance, transmission, or scope mode.||FREE|
|SpectraWiz-LX||StellarNet Linux Driver and JSON interface written in Python||$495|
|64-bit Driver Wrapper||StellarNet 64-bit only driver wrapper for swdll. Facilitates compilation of 64-bit only customizable programs for developers and OEM customers||$595|
|NIST-VBA||Special version of NISTs Excel spreadsheet to measure CRI and CQS of white LEDs & lamp in “real-time” on WinXP||FREE|
|SpectraWiz-DEMO®||Source code “demo” program in Borland Delphi Pascal for spectral display & capture, episodic time capture and conversion for Excel||FREE|
|SpectraWiz LV®||LabVIEW Mega Program in LabVIEW ver 7.x & 8.x – controls up to 8 simultaneous spectrometers & radiometers – includes source diagram and is compatible with Wizard-Runtime engine for chemometrics models||$1,500|
|SpectraWiz-ID||SpectraWiz software with Spectral-ID application. Includes spectral emission database to identify unknown elemental peaks. SpectraWiz operates with up to 8 simultaneous spectrometer channels.||$1,500|
|SpectraWiz-ID-FRL||The SpectraWiz-ID Forensic Raman Library includes over 200 narcotics, explosives, and chemical precursors||$1,500|
|ChemWiz-ADK||Chemometrics model builder||$3500|
|Wizard-Runtime||Runtime engine for chemometric models – one license only||$1500|
Prices are subject to change without notice. F.O.B. Tampa, Florida. Payment terms NET 30 days with established credit.
Spectrometer spectral range may be +/-10nm from specification start and end. Please provide specific requirements to StellarNet Sales engineers prior to placements of order if you have specific spectral range requests.
*** 30% surcharge applied to ALL ACCESSORY items purchased WITHOUT spectrometer instrumentation. ***
Items may be returned within 30 days for credit less shipping costs plus a 10% evaluation fee.
Custom items are non-returnable, including but not limited to Raman & NIR instrumentation as well as Software.
Please refer to the Official StellarNet Terms of Sale
Quotation and/or Technical Information Request
Please fill out the StellarNet Contact form below for technical information about a product or system OR send us an email at ContactUs@StellarNet.us.
Please provide as many details as possible and one of our Application Sales Scientists will contact you will all your requested information.
